Tripp Lite HDMI + IR + Serial RS232 over Cat5 Cat6 Active Video Extender TAA GSA
Tripp Lite HDMI + IR + Serial RS232 over Cat5 Cat6 Active Video Extender TAA GSA - 3840 x 2160 4Kx2K UHD 1080p @ 24/30 Hz Up to 328 ft.
| $572.12 | Retail $694.40 |
Manufacturer:
Tripp Lite
Product ID:
12074
Item:
B126-1A1SR
UPC Code:
037332171108
Our Part #
TRPB1261A1SR
Condition
New
Subscribe & Save 5%
| Ferquency |
$572.12EA
$694.40
$694.40
Availability
In Stock
Product description

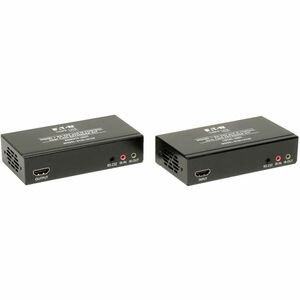

Extender kit features a transmitter unit and a receiver unit to extend your HDMI audio and video when the source is located farther than conventional cables allow. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. You can extend a 3840 x 2160 (4K x 2K) Ultra High Definition (UHD) signal at 24/30Hz up to 328'' with a single Cat6a cable, up to 230'' with a 24 AWG solid-wire Cat6 cable, and up to 150'' with a 26 AWG solid-wire Cat5e cable (N001- and N002-Series). For extending computer video resolutions of 1920 x 1200 at 60 Hz or high-definition video resolutions of 1080p at 60 Hz up to 328'', use a single 24 AWG solid-wire Cat5e/6 cable. You can also control RS-232 serial devices, such as touch-screen displays or scanners, at baud rates up to 115 Kbps. Kit supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video and HDCP.
Specifications
Transmitter Depth
11.30"
Transmitter Height
2"
Transmitter Width
6.20"
UPC Alternates
037332171108 818240831014
Brand Name
Tripp Lite
Certifications & Standards
TAA
Color
Black
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Rack-mountable
Form factor
Wall Mountable
Form factor
Pole-mountable
Graphics Modes
4K
Input voltage
220 V AC
Input voltage
110 V AC
Limited Warranty
1 Year
Manufacturer
Tripp Lite
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
B126-1A1SR
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Extender kit features a transmitter unit and a receiver unit to extend your HDMI audio and video when the source is located farther than conventional cables allow. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. You can extend a 3840 x 2160 (4K x 2K) Ultra High Definition (UHD) signal at 24/30Hz up to 328' with a single Cat6a cable up to 230' with a 24 AWG solid-wire Cat6 cable and up to 150' with a 26 AWG solid-wire Cat5e cable (N001- and N002-Series). For extending computer video resolutions of 1920 x 1200 at 60 Hz or high-definition video resolutions of 1080p at 60 Hz up to 328' use a single 24 AWG solid-wire Cat5e/6 cable. You can also control RS-232 serial devices such as touch-screen displays or scanners at baud rates up to 115 Kbps. Kit supports 7.1-channel surround sound DTS-HD and Dolby TrueHD audio as well as 3D video and HDCP.
Maximum Operating Distance
328 ft
Maximum Video Resolution
3840 x 2160
Number of HDMI Inputs
1
Number of Network (RJ-45) Ports
2
Package Contents
- Local Transmitter and Remote Receiver Units
- 2 x Sets of IR-IN Cables
- 2 x Sets of IR-OUT Cables
- 3.5 mm Male-to-DB9-Female Adapter Cable
- 3.5 mm Male-to-DB9-Male Adapter Cable
- 2 x Sets of External Power Supplies (Input: 100-240V 50/60 Hz 0.5A Output: 5V 2A)
- 2 x Sets of Mounting Hardware Kits
- Owner's Manual
Product Name
HDMI + IR + Serial RS232 over Cat5 / 6 Active Extender Kit
Product Type
Video Extender Transmitter/Receiver
Twisted Pair Cable Standard
Category 6
