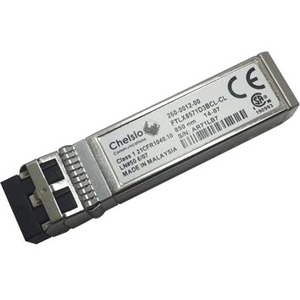

Chelsio 10G long reach SFP + Optic Module
Chelsio 10G long reach SFP + Optic Module - 1 x LC Duplex 10GBase-SR10
| $21.97 | Retail $33.00 |
- Cost-effective and optimized for high-speed data center interconnects.Hot-pluggable SFP+ footprint
- Improved pluggable form factor
- Supports 9.95 to 10.5 Gb/s bit rates
- Maximum link length of 300m on 2000 MHzKm MMF
- Uncooled 850nm VCSEL laser
- Receiver limiting electrical interface
- Duplex LC connector
- Built-in digital diagnostic functions
By:
Chelsio
Manufacturer:
Chelsio Communications
Product ID:
55880
Item:
SM10G-SR
UPC Code:
001313924281
Our Part #
43201553
Condition
New
$21.97EA
$33.00
$33.00
Availability
Only 143 Left In Stock
Product description
Chelsio 10G long reach SFP + Optic Module - 1 x LC Duplex 10GBase-SR10
1 x LC Duplex 10GBase-SR10
Specifications
Fiber Mode Supported
Multi-mode
Interfaces/Ports Details
1 x LC Duplex 10GBase-SR
UPC Alternates
001313924281 818239877856 818278508933 897709002226 939531330006
Additional Information
Distance support: 300m
Application/Usage
Data Networking
Brand Name
Chelsio
Compatibility
- T520-CR
- T520-LL-CR
- T520-SO-CR
- T540-CR
- T520-OCP-SO
- T580-CR (QSA Mode)
- T580-LP-CR (QSA Mode)
- T580-SO-CR (QSA Mode)
- T580-OCP-SO (QSA Mode)
Connector Type
LC
Environmental Certification
RoHS-6
Environmentally Friendly
Yes
Ethernet Technology
10 Gigabit Ethernet
Manufacturer
Chelsio Communications
Manufacturer Part Number
SM10G-SR
Manufacturer Website Address
http://www.chelsio.com
Marketing Information
Chelsio's SM10G-SR 10Gb/s 850nm Multimode SFP+ optical transceivers are designed and certified for use with Chelsio's 10-Gigabit Ethernet Unified Wire Adapters.
The Chelsio SM10G-SR Transceiver is compatible with Chelsio's T5-based Unified Wire Adapters. The T5 adapters support PCI Express 3.0 host bus interface and are optimized for storage cloud computing HPC virtualization and other data center applications. The fifth-generation T5 ASIC technology from Chelsio provides the highest performance while dramatically lowering host-system CPU and memory overhead with on-board hardware that offloads TCP/IP iSCSI FCoE and iWARP RDMA processing. As a result the system benefits from higher bandwidth lower latency and reduced power consumption.
Maximum Data Transfer Rate
10
Media Type Supported
Optical Fiber
Network Technology
10GBase-SR
Product Name
10Gb Optical Module
Product Type
SFP+
Total Number of Ports
1
