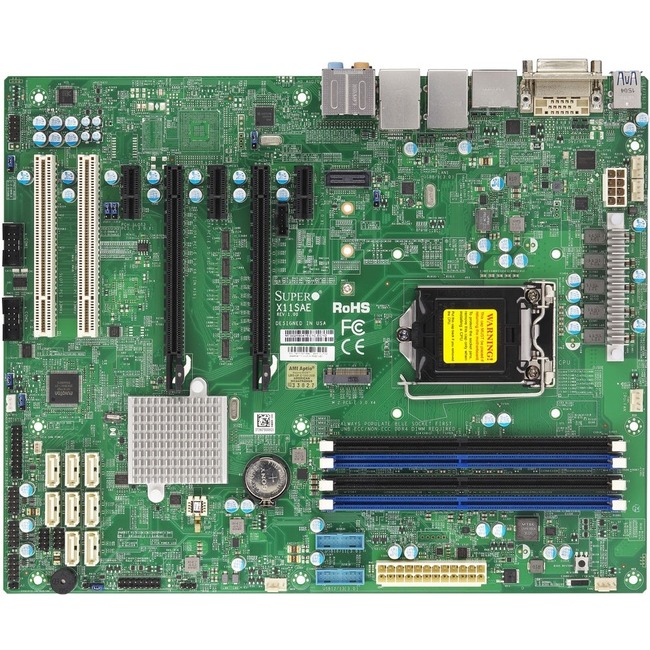

Supermicro X11SAE Workstation Motherboard - Intel C236 Chipset - Socket H4 LGA-1151 - ATX
Supermicro X11SAE Workstation Motherboard - Intel C236 Chipset - Socket H4 LGA-1151 - ATX - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 8 x SATA Interfaces
| $427.75 |
- Compatible Intel Core i7 processor provides lightning fast speed and peak performance, even for the toughest tasks and intensive games
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- With 2 USB 3.0 port(s), transfer multiple or large files without any error
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
By:
Supermicro
Manufacturer:
Supermicro Computer, Inc
Product ID:
57577
Item:
MBD-X11SAE-O
UPC Code:
060896679568
Our Part #
1V2773
Condition
New
$427.75EA
Availability
Only 480 Left In Stock
Product description
Supermicro X11SAE Workstation Motherboard - Intel C236 Chipset - Socket H4 LGA-1151 - ATX - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 8 x SATA Interfaces
64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 8 x SATA Interfaces
Specifications
Chipset Model
C236
Maximum Memory Supported
64 GB
Memory Speed Supported
1600 MHz
Memory Speed Supported
2133 MHz
Memory Speed Supported
1866 MHz
Number of Memory Slots
4
Number of PCI Express x1 Slots
3
Number of PCI Express x16 Slots
2
Number of SATA Interfaces
8
Number of Total Expansion Slots
7
Onboard Video
CPU Dependent Video
Processor Socket
Socket H4 LGA-1151
Processor Supported
Core i5
Processor Supported
Core i7
Processor Supported
Xeon
Processor Supported
Core i3
UPC Alternates
060896679568 672042204793
Audio Channels
7.1
Brand Name
Supermicro
Chipset Manufacturer
Intel
Compatibility
Supermicro Chassis:
Mid/Mini Tower Chassis:
4U / Tower Chassis:
SuperServer(s) Model(s):
Mid/Mini Tower Chassis:
- SC732D4-903B
- SC732D4-865B
4U / Tower Chassis:
- SC743TQ-1200B-SQ
SuperServer(s) Model(s):
- SYS-5039A-IL
Controller Type
Serial ATA/600
Depth
9.6"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
ATX
Limited Warranty
1 Year
Manufacturer
Supermicro Computer Inc
Manufacturer Part Number
MBD-X11SAE-O
Manufacturer Website Address
http://www.supermicro.com
Marketing Information
Xeon® E3-1200 v5 Family Boards / Socket H4 (LGA 1151)
Supermicro's single processor Socket H4 designs feature the Intel® C236 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS onboard IPMI or vPro USB 3.0/USB 3.1 PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller 4K HD graphics resolution and 3 displays with HDMI DP and DVI ports. Designed with performance reliability manageability and long life in mind Supermicro's single processor motherboards are the perfect solution for a variety of server workstation and embedded applications.
Supermicro's single processor Socket H4 designs feature the Intel® C236 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS onboard IPMI or vPro USB 3.0/USB 3.1 PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller 4K HD graphics resolution and 3 displays with HDMI DP and DVI ports. Designed with performance reliability manageability and long life in mind Supermicro's single processor motherboards are the perfect solution for a variety of server workstation and embedded applications.
Memory form factor
DIMM
Memory form factor
UDIMM
Memory Technology
DDR4 SDRAM
Package type
Bulk
Product Model
X11SAE
Product Name
X11SAE Workstation Motherboard
Product Type
Workstation Motherboard
RAID Levels
1
RAID Levels
10
RAID Levels
0
RAID Levels
5
Total Number of USB Ports
6
Width
12"
