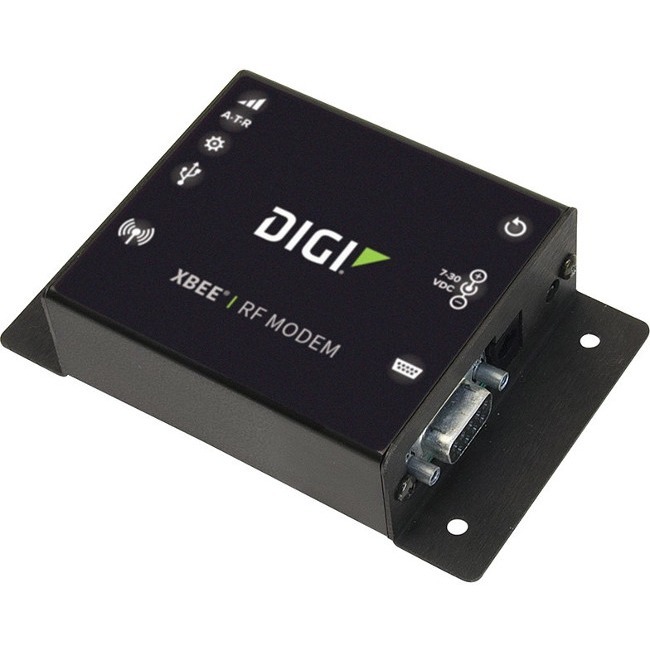

Digi XBee-PRO 900HP Radio Modem
Digi XBee-PRO 900HP Radio Modem
| $229.56 |
By:
Digi
Manufacturer:
Digi International
Product ID:
60404
Item:
XM-M92-2P-UA
UPC Code:
663072958848
Our Part #
43222628
Condition
New
$229.56EA
Availability
Currently out of stock
You may be also interested
Product description
Digi XBee-PRO 900HP Radio Modem
Specifications
UPC Alternates
663072958848
Additional Information
PERFORMANCE
- INDOOR/URBAN RANGE: 10 Kbps: up to 2000 ft (610 m); 200 Kbps: up to 1000 ft (305 m)
- OUTDOOR/RF LINE-OF-SIGHT RANGE: 10 Kbps: up to 9 miles (15.5 km); 200 Kbps: up to 4 miles (6.5 km); w/2.1 dbi dipole antenna
- TRANSMIT POWER OUTPUT: Up to 24 dBm (250 mW) software selectable
- THROUGHPUT DATA RATE: 10 Kbps: up to 8.8 Kbps; 200 Kbps: up to 105.5 Kbps; (When configured as point-to-multipoint)
- RF DATA RATE: 10 Kbps or 200 Kbps
- INTERFACE DATA RATE: 125-650000 bps (Software selectable includes non-standard baud rates)
- RECEIVER SENSITIVITY: 10 Kbps: -110 dBm; 200 Kbps: -101 dBm
- FREQUENCY: 902-928 MHz (located in the 900 MHz ISM Band)
- SPREAD SPECTRUM: Frequency hopping
- SUPPORTED NETWORK TOPOLOGIES: Mesh Point-to-point Point-to-multipoint Peer-to-peer
- CHANNEL CAPACITY: 8 hop sequences share 25 channels 64 channels available (there are 64 channels available of which the user can select 25 that are hopped through in 8 different patterns.)
- CONNECTOR: RPSMA (Reverse polarity SMA)
- POWER SUPPLY: 7-30 VDC
- RECEIVE CURRENT: 60 mA (@9V)
- TRANSMIT CURRENT: 140 mA (@9V)
- OPERATING TEMPERATURE: -40° C to 85° C (Industrial)
- FCC PART 15.247 (U.S.A): Yes
- IC (CANADA): Yes
- C-TICK (AUSTRALIA): Yes
Brand Name
Digi
Depth
1.1"
Height
4.5"
Host interface
RS-485
Manufacturer
Digi International
Manufacturer Part Number
XM-M92-2P-UA
Manufacturer Website Address
http://www.digi.com
Marketing Information
900 MHz stand-alone RF modems provide outstanding range (up to 28 miles) in a reliable wireless solution
Digi XBee-PRO 900HP RF modems can be configured in minutes to provide reliable serial cable replacement between many different types of electronic devices. These modems utilize the Digi XBee-PRO 900HP 900 MHz RF module in an enclosure with interface options that include RS-232 RS-485 USB and Ethernet with transmission ranges of up to 28 miles.
Digi XBee-PRO 900HP RF modems allow the user to easily make their existing wired systems wireless simply by connecting to this product. They take advantage of the DigiMesh® networking protocol featuring dense network operation using mesh technology.
Digi XBee-PRO 900HP RF modems can wirelessly connect a variety of devices across many applications including remote monitoring building automation/ security industrial automation/SCADA fleet management/asset tracking and sensor data capture in embedded systems.
BENEFITS
Digi XBee-PRO 900HP RF modems can be configured in minutes to provide reliable serial cable replacement between many different types of electronic devices. These modems utilize the Digi XBee-PRO 900HP 900 MHz RF module in an enclosure with interface options that include RS-232 RS-485 USB and Ethernet with transmission ranges of up to 28 miles.
Digi XBee-PRO 900HP RF modems allow the user to easily make their existing wired systems wireless simply by connecting to this product. They take advantage of the DigiMesh® networking protocol featuring dense network operation using mesh technology.
Digi XBee-PRO 900HP RF modems can wirelessly connect a variety of devices across many applications including remote monitoring building automation/ security industrial automation/SCADA fleet management/asset tracking and sensor data capture in embedded systems.
BENEFITS
- Industrial design with -40° C to 85° C operating temperature
- Superior outdoor LOS range of up to 28 miles
- RF data throughput up to 200 Kbps
- 900 MHz license-free ISM band operation
- Interface options include RS-232 RS-485 USB and Ethernet
- DigiMesh peer-to-peer mesh networking protocol
- Self-healing and discovery for network stability
- Includes mini-USB port for simple device configuration
Product Line
XBee-PRO
Product Model
900HP
Product Name
XBee-PRO 900HP Radio Modem
Product Type
Radio Modem
Weight (Approximate)
5.25 oz
Width
2.8"
