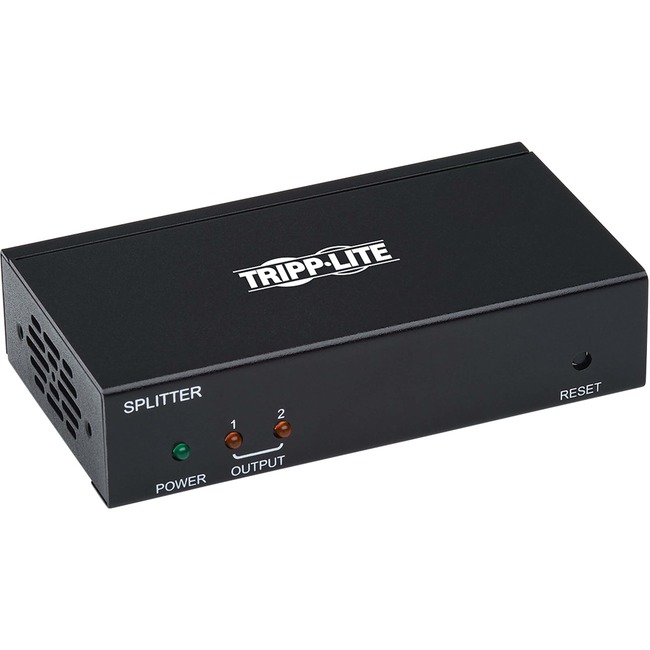

Tripp Lite HDMI Over Cat6 Extender Splitter w/ PoC 2-Port 4K@60Hz 4:4:4, HDR, TAA

Splitter Ideal for Digital Signage or Displaying Video in Schools or Trade Show Booths
This two-port transmitter/splitter is recommended for video presentations in conference rooms schools trade shows meeting facilities houses of worship retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127-002-H extends 4K video and stereo audio signals from an HDMI source device to two HDMI displays up to 125 feet (38.1 meters) away via user-supplied Cat6 cabling.

Transmits Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 Color
The B127-002-H supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with full rich uncompressed DTS-HD Dolby TrueHD and 7.1-channel digital audio. The transmitter is compatible with HDCP 2.2 EDID and HDMI 2.0 standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. It is backward compatible with non-4K equipment so you can use this transmitter with most HDMI source devices.

Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
Built-in Power over Cable (PoC) technology powers the low-profile receiver over Cat6 cable. Green and orange LEDs will light up to indicate the unit is receiving power and a signal is being received. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receivers away from an AC outlet.

Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter works right out of the box with no software required. Mounting hardware is included for installing the unit on a wall pole or 19-inch rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as Tripp Lite's P568- or P569-Series). Then connect the transmitter to Tripp Lite B127-100-H or B127-100-H-SR remote receivers using Cat6 patch cable (such as Tripp Lite N202-Series cable).

TAA-Compliant for GSA Schedule Purchases
The B127-002-H is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Typical Applications

• Connect a media server Blu-ray player cable/satellite box Roku gaming system or other home theater component to two large-screen 4K televisions or projectors
• Upgrade the video quality of your trade show presentation or digital signage installation in a commercial or educational setting to 4K x 2K

System Requirements

• Source device with HDMI output (Blu-ray player cable box laptop)
• Tripp Lite B127-100-H or B127-100-H-SR remote receivers

• B127-002-H Video Extender Transmitter
• External Power Supply with 4.5 ft. Cord (Input: 100-240V 50/60 Hz 0.6A; Output: 24V 1A)
• 4 x International plug adapters (North America Europe U.K. and Australia)
• Mounting Hardware
• Owner's Manual
