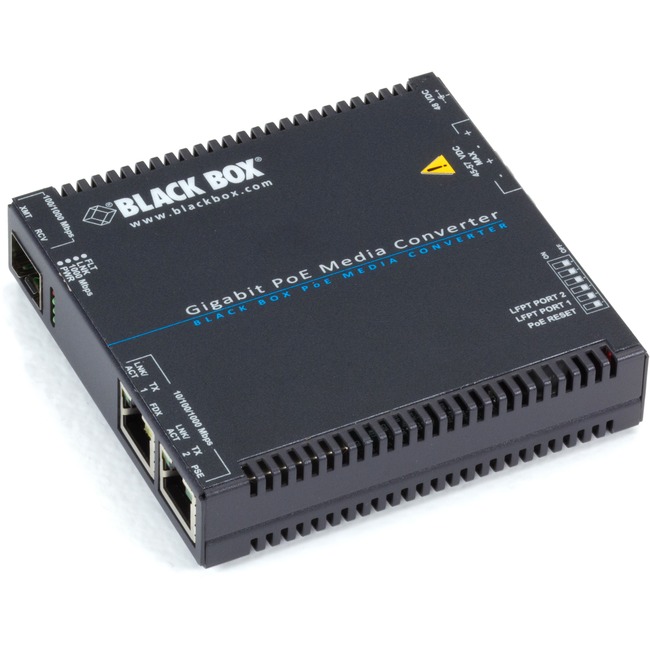

Black Box Gigabit PoE Media Converter, 10/100/1000BASE-T to SFP
Black Box Gigabit PoE Media Converter, 10/100/1000BASE-T to SFP - Network (RJ-45) - 2x PoE (RJ-45) Ports - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 1 x Expansion Slots - SFP - 1 x SFP Slots - Wall Mountable, Rail-mountable - TAA Compliant
| $414.86 | Retail $499.95 |
- Features two 10-/100-/1000-Mbps copper ports and one SFP port that can be customized to the interface of your choice through the use of standard SFPs.
- Both UTP ports are autosensing with Auto MDI/MDI-X; one UTP port supports 802.3af PoE.
- Acts as power sourcing equipment (PSE) on the copper side to power PoE devices.
- Features an extended temperature range when used with DC terminal-block power
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
64181
Item:
LGC5200A
UPC Code:
098379252250
Our Part #
9U6171
Condition
New
$414.86EA
$499.95
$499.95
Availability
Only 3 Left In Stock
Product description
Black Box Gigabit PoE Media Converter, 10/100/1000BASE-T to SFP - Network (RJ-45) - 2x PoE (RJ-45) Ports - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 1 x Expansion Slots - SFP - 1 x SFP Slots - Wall Mountable, Rail-mountable - TAA Compliant
Network (RJ-45) - 2x PoE (RJ-45) Ports - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 1 x Expansion Slots - SFP - 1 x SFP Slots - Wall Mountable, Rail-mountable - TAA Compliant
Specifications
Number of PoE (RJ-45) Ports
2
Number of Total Expansion Slots
1
UPC Alternates
098379252250 822088107941
Additional Information
This product is covered by one of more of the following: United States Patent Nos. 7457250; 8902760; and/or 9019838.
Brand Name
Black Box
Country of origin
United States
Depth
3.8"
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Expansion Slot Type
SFP
Form factor
Wall Mountable
Form factor
Rail-mountable
Height
0.8"
Limited Warranty
6 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
LGC5200A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Further Details
This tough media converter is the ideal way extend your network over fiber and also power a PoE device. Use it to link to faraway PoE devices such as IP security cameras wireless access points and VoIP phones.
The media converter features two autosensing 10/100/1000 UTP ports plus an SFP port that can be customized to virtually any interface-including multimode fiber single-mode fiber or Gigabit copper-through the use of a standard SFP. One UTP port supports 802.3af Power over Ethernet enabling it to power a PoE PD device; the other is a straightforward Ethernet port which can be used for network expansion.
The Gigabit PoE Media Converter can be powered three ways: from an AC power supply (LGC5200-PS order separately) via the DC power jack or via the DC terminal block. When used with DC power to the terminal block the converter supports an extended operating temperature range of +32 to +158° F (0 to +70° C).
The converter requires only one power source to power both the converter and a PoE+ device; you can position the PoE+ device up to 100 meters (328 feet) away from the converter enabling flexible placement of wireless APs and security cameras. A pair of input terminals and output terminals enables you to cascade DC power in a DIN rail installation (optional DIN Rail Clip (LXC-DR) is sold separately).
This tough media converter is the ideal way extend your network over fiber and also power a PoE device. Use it to link to faraway PoE devices such as IP security cameras wireless access points and VoIP phones.
The media converter features two autosensing 10/100/1000 UTP ports plus an SFP port that can be customized to virtually any interface-including multimode fiber single-mode fiber or Gigabit copper-through the use of a standard SFP. One UTP port supports 802.3af Power over Ethernet enabling it to power a PoE PD device; the other is a straightforward Ethernet port which can be used for network expansion.
The Gigabit PoE Media Converter can be powered three ways: from an AC power supply (LGC5200-PS order separately) via the DC power jack or via the DC terminal block. When used with DC power to the terminal block the converter supports an extended operating temperature range of +32 to +158° F (0 to +70° C).
The converter requires only one power source to power both the converter and a PoE+ device; you can position the PoE+ device up to 100 meters (328 feet) away from the converter enabling flexible placement of wireless APs and security cameras. A pair of input terminals and output terminals enables you to cascade DC power in a DIN rail installation (optional DIN Rail Clip (LXC-DR) is sold separately).
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10/100/1000Base-TX
Network Technology
1000Base-X
Package Contents
Power source
AC Adapter
Product Name
Gigabit PoE Media Converter 10/100/1000BASE-T to SFP
Product Type
Transceiver/Media Converter
USB
No
Width
3.6"
