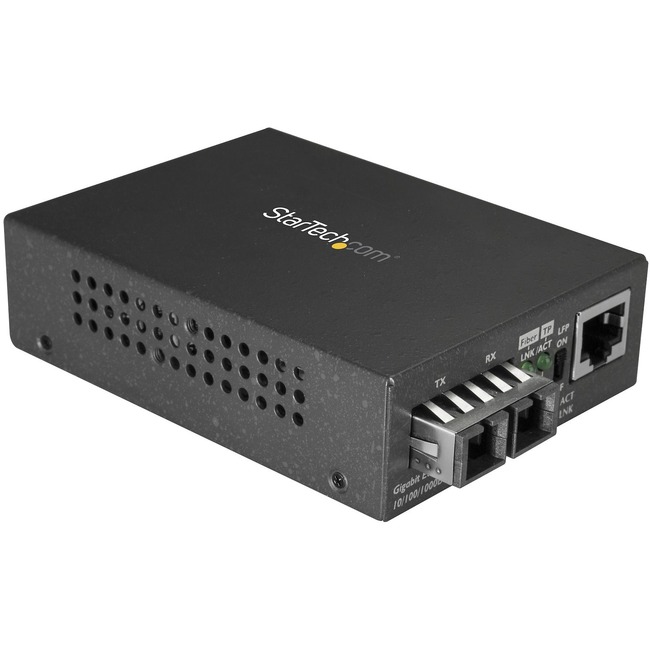

StarTech.com Single Mode SC Fiber Ethernet Media Converter - 1000BASE-LX Gigabit Fiber Optic to Copper Bridge - 10/100/1000 Network 10km
StarTech.com Single Mode SC Fiber Ethernet Media Converter - 1000BASE-LX Gigabit Fiber Optic to Copper Bridge - 10/100/1000 Network 10km - Single mode fiber Ethernet media converter extends & bridges copper networks - 10/100/1000 (Gigabit), 1000BASE-LX, 1310nm, 10km (6.2mi), Unmanaged, SMF, SC, RJ45, Mounting Brackets, LFP, VLAN, ESD Surge + Contact & Air Protection, 2 Yr Warranty
| $105.95 | Retail $123.99 |
- Converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Supports a maximum distance of 10 km over single mode duplex fiber optic cable (SC connection)
- Compact design and wall mountable
- Non-blocking full wire-speed forwarding rate
- Provides DIP switch supporting Link Fault Pass-through function
- LED Indicators for simple Ethernet/fiber network link monitoring
- 1310 nm wavelength
- Supports IEEE 802.1q Tag VLAN pass through
Manufacturer:
StarTech.com
Product ID:
66247
Item:
MCMGBSCSM10
UPC Code:
065030878241
Our Part #
2NZ534
Condition
New
$105.95EA
$123.99
$123.99
Availability
Only 1273 Left In Stock
Product description
StarTech.com Single Mode SC Fiber Ethernet Media Converter - 1000BASE-LX Gigabit Fiber Optic to Copper Bridge - 10/100/1000 Network 10km - Single mode fiber Ethernet media converter extends & bridges copper networks - 10/100/1000 (Gigabit), 1000BASE-LX, 1310nm, 10km (6.2mi), Unmanaged, SMF, SC, RJ45, Mounting Brackets, LFP, VLAN, ESD Surge + Contact & Air Protection, 2 Yr Warranty
Single mode fiber Ethernet media converter extends & bridges copper networks - 10/100/1000 (Gigabit), 1000BASE-LX, 1310nm, 10km (6.2mi), Unmanaged, SMF, SC, RJ45, Mounting Brackets, LFP, VLAN, ESD Surge + Contact & Air Protection, 2 Yr Warranty
Specifications
Fiber Mode Supported
Single-mode
Fiber Optic Wavelength
1310 nm
Maximum Distance Supported
6.21 Mile
SC Port Type
Duplex
UPC Alternates
065030878241 818214631411 818242052981 818242619658
Country of origin
Taiwan
Depth
2.8"
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmental Certification
REACH
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Form factor
Wall Mountable
Height
1"
Limited Warranty
2 Year
Manufacturer
StarTech.com
Manufacturer Part Number
MCMGBSCSM10
Manufacturer Website Address
http://www.startech.com
Marketing Information
This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.
Extend your GbE network cost-effectively
The fiber media converter provides a cost-effective way to transparently convert copper to fiber or fiber to copper for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.) the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes for instance connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
10Base-T
Network Technology
1000Base-T
Network Technology
1000Base-LX
Network Technology
100Base-LX
Package Contents
- Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
- 1 x Universal Power Adapter (NA/JP UK EU ANZ)
- 1 x Quick-start Guide
Packaged Quantity
1
Plug/Connector Type
Type N
Power consumption
10 W
Power source
AC Adapter
Product Name
Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
Product Type
Transceiver/Media Converter
Total Number of Ports
2
Weight (Approximate)
6.90 oz
Width
4.1"
