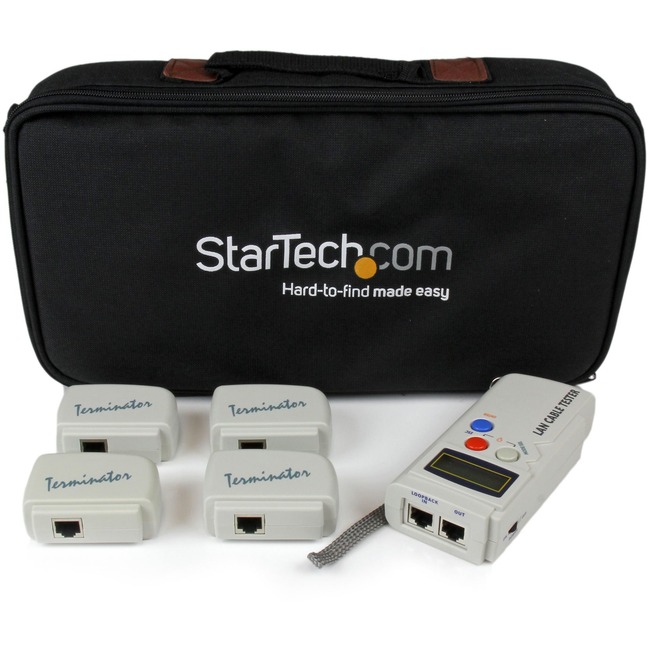

StarTech.com StarTech.com Professional RJ45 Network Cable Tester with 4 Remote Loopback Plugs - LAN Cable Tester Professional - Network testing device - Token Ring
StarTech.com StarTech.com Professional RJ45 Network Cable Tester with 4 Remote Loopback Plugs - LAN Cable Tester Professional - Network testing device - Token Ring - Test several cable runs simultaneously - lan cable tester - network cable tester - ethernet cable tester - rj45 cable tester - cat5 cable tester
| $217.78 | Retail $222.99 |
- Easy to read LCD display shows continuity, opens, shorts, and pin mismatches.
- A pin mapping of the current cable is displayed while the unit performs the test.
- Identifies (8) different wiring schemes plus (1) temporary user-defined scheme.
- Includes (4) remote locator plugs, each programmed with a unique ID number so multiple drops can be tested before moving the plugs to new outlets.
- Tests both shielded and unshielded cable in local and remote mode.
- Backlit display allows test readings to be visible in dark areas.
- Low battery indicator.
- Canvas carrying case has plenty of extra space for tools, patch cables and remote locator plugs.
- Menu driven user interface makes the tester easy to use and fast for anyone to learn.
Manufacturer:
StarTech.com
Product ID:
67331
Item:
LANTESTPRO
UPC Code:
065030788717
Our Part #
302376
Condition
New
$217.78EA
$222.99
$222.99
Availability
Only 6 Left In Stock
Product description
StarTech.com StarTech.com Professional RJ45 Network Cable Tester with 4 Remote Loopback Plugs - LAN Cable Tester Professional - Network testing device - Token Ring - Test several cable runs simultaneously - lan cable tester - network cable tester - ethernet cable tester - rj45 cable tester - cat5 cable tester
Test several cable runs simultaneously - lan cable tester - network cable tester - ethernet cable tester - rj45 cable tester - cat5 cable tester
Specifications
UPC Alternates
065030788717 818242883011 818242918126
Additional Information
- Menu driven user interface
- Easy to read LCD display shows continuity opens shorts and pin mismatches
Country of origin
Taiwan
Depth
13.8"
Environmental Certification
RoHS
Environmental Certification
REACH
Environmental Certification
WEEE
Environmentally Friendly
Yes
Height
2"
Limited Warranty
2 Year
Manufacturer
StarTech.com
Manufacturer Part Number
LANTESTPRO
Manufacturer Website Address
http://www.startech.com
Marketing Information
StarTech.com's Advanced Network Cable Tester (RJ45) lets you test several long network cables faster and more efficiently than ever before.
The network cable tester uses remote loop-back plugs each with their own unique easy-to-identify ID number. If several cables need to be tested users can put a loop-back plug on the end of each cable run and go to the other end to test and identify each one.
The network cable tester provides a basic continuity test with a pin-map that will identify wiring errors allowing them to be quickly corrected. The cable tester also identifies several common pinnings and displays the applications for each.
Please note: the Network Cable Tester requires a separate 9V battery (not included) to operate.
Media Type Supported
Twisted Pair
Number of Network (RJ-45) Ports
2
Package Contents
- Professional RJ45 Network Cable Tester with 4 Remote Loopback Plugs
- 1 x Instruction Sheet
Packaged Quantity
1
Product Name
Professional RJ45 Network Cable Tester with 4 Remote Loopback Plugs
Product Type
Cable Analyzer
Status Indicators
Low battery indicator
Weight (Approximate)
11.90 oz
Width
7.5"
