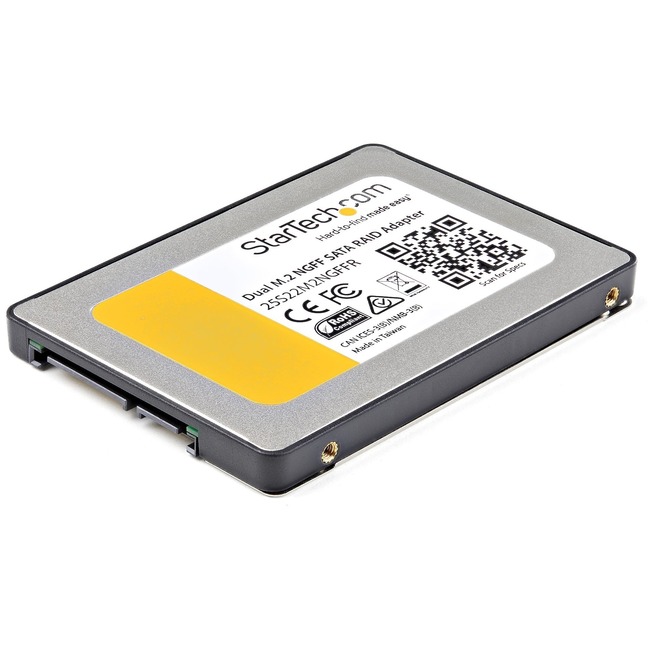

StarTech.com Dual M.2 SATA Adapter with RAID - 2x M.2 SSDs to 2.5in SATA (6Gbps) RAID Adapter Converter with TRIM Support

• Drive Connectors: 1 - SATA Data & Power Combo (7+15 pin)

• Host Connectors: 2 - M.2 (SATA B-Key NGFF)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -10°C to 85°C (14°F to 185°F)
• Humidity: 5% ~ 95% RH
• Interface: SATA
• Supported Drive Height(s): 2230; 2242; 2260; 2280
• Number of Drives: 2
• Drive Size: 22m - M.2 NGFF
• Compatible Drive Types: M.2 (SATA B-Key NGFF)
• Drive Installation: Fixed
• Chipset ID: ASMedia - ASM1092R
• Maximum Data Transfer Rate: 6Gbps
• Type and Rate: SATA III (6 Gbps)
• Port Multiplier: Yes
• Hardware Raid Supported: Yes
• Supported RAID Modes: RAID 0 (Striped Disks); RAID 1 (Mirrored Disks); JBOD - (Just a Bunch of Disks); BIG (Spanning or Concatenation)
• General Specifications: Not compatible with M.2 NVMe or AHCI PCI-Express SSDs . In order to see multiple drives in JBOD mode your computer's SATA controller must also support Port Multiplier.
• MTBF: 500000

• CE
• FCC

Boost your system performance by enhancing the capacity speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 solid-state drives in a single 2.5" drive bay and configure a powerful RAID array.

Build a RAID array to enhance system performance

The dual M.2 to SATA adapter supports multiple RAID modes (RAID 0 1 BIG) helping you to achieve greater SSD capacity or data redundancy depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller so both drives can be used independent of one another.

Maximize file transfer speeds

The dual SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SSDs in place of a platter drive reduces your data transfer bottlenecks and gives you file transfer speeds of up to 6 Gbps. M.2 SSDs also save you money by reducing your power consumption over regular platter drives.

The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.

Get dependable drive protection

The M.2 to SATA adapter features an enclosed housing that helps protect your NGFF (Next Generation Form Factor) SSD. The added protection gives you peace of mind when you are using your M.2 drives in applications that require an added level of durability such as hot-swap drive bays or external SATA docking stations.

The 25S22M2NGFFR is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Boost your system performance by enhancing the capacity speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 solid-state drives in a single 2.5" drive bay and configure a powerful RAID array.

Build a RAID array to enhance system performance

The dual M.2 to SATA adapter supports multiple RAID modes (RAID 0 1 BIG) helping you to achieve greater SSD capacity or data redundancy depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller so both drives can be used independent of one another.

Maximize file transfer speeds

The dual SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SSDs in place of a platter drivereduces your data transfer bottlenecks and gives you file transfer speeds of up to 6 Gbps. M.2 SSDs also save you money by reducing your power consumption over regular platter drives.

The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.

Get dependable drive protection

The M.2 to SATA adapter features an enclosed housing that helps protect your NGFF (Next Generation Form Factor) SSD. The added protection gives you peace of mind when you are using your M.2 drives in applications that require an added level of durability such as hot-swap drive bays or external SATA docking stations.

The 25S22M2NGFFR is backed by a StarTech.com 2-year warranty and free lifetime technical support.

• Dual M.2 NGFF SATA Adapter With RAID
• 2 x M.2 Drive Mount Hardware
• 4 x Screws
• 1 x Mini Screwdriver
• 1 x Quick Start Guide
