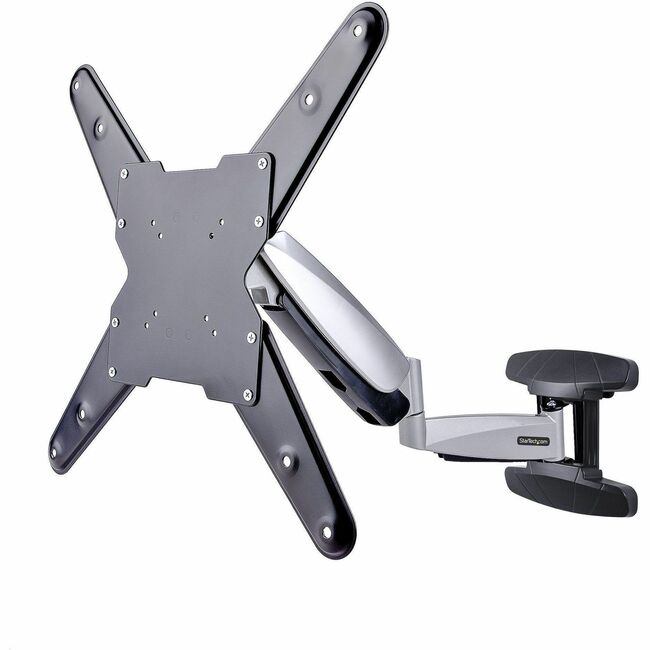

StarTech.com VESA TV Wall Mount, Adjustable Full Motion TV Wall Mount For 23"-55" Displays, Extendable/Tilting/Swivel TV Wall Mount
StarTech.com VESA TV Wall Mount, Adjustable Full Motion TV Wall Mount For 23"-55" Displays, Extendable/Tilting/Swivel TV Wall Mount - Spring-assisted height adjustable TV wall mount range 12.6in/32cm; Extendable arm range 23.4in/59.5cm - Tilting/swivel/full motion for 23-55in TVs; 75x75 to 400x400 VESA TV wall mount patterns; 66lb/30kg capacity - TV mounting bracket ships assembled
| $131.08 | Retail $158.99 |
- HEIGHT ADJUSTABLE TV WALL MOUNT: Spring-assisted height adjustable range 12.6in (32cm); Articulating wall mount TV bracket supports TVs up to 55in; Max weight 66lb (30kg); Single-stud design made from powder-coated diecast aluminum for maximum durability
- ONE-TOUCH MOTION: Full-motion TV wall mount features a spring mechanism for effortless viewing angle and height adjustments; VESA plate features +/-90? swivel, +8/-15? tilt, and +/-3? rotation; Toolless adjustment w/ built-in cable management
- RANGE OF MOTION: Low profile VESA TV wall mount with jointed arm assembly supports +/-90? swivel and folds to just 2.2in (5.8cm) from the wall; Max arm extension 23.4in (59.5cm); Lateral range of 3.9ft (1.19m) ideal for corner mounting maximizing space
- COMPATIBILITY: TV mounting bracket supports TVs up to 55" from LG, Samsung, Sony, Hisense, Sharp, and other TVs; Compatible VESA patterns: 75x75, 100x100, 200x100, 200x200, 300x300, 400x200, and 400x400; Spacers an
Manufacturer:
StarTech.com
Product ID:
68009
Item:
FHA-TV-WALL-MOUNT
UPC Code:
065030895149
Our Part #
09PV60
Condition
New
$131.08EA
$158.99
$158.99
Availability
Only 652 Left In Stock
Product description
StarTech.com VESA TV Wall Mount, Adjustable Full Motion TV Wall Mount For 23"-55" Displays, Extendable/Tilting/Swivel TV Wall Mount - Spring-assisted height adjustable TV wall mount range 12.6in/32cm; Extendable arm range 23.4in/59.5cm - Tilting/swivel/full motion for 23-55in TVs; 75x75 to 400x400 VESA TV wall mount patterns; 66lb/30kg capacity - TV mounting bracket ships assembled
Spring-assisted height adjustable TV wall mount range 12.6in/32cm; Extendable arm range 23.4in/59.5cm - Tilting/swivel/full motion for 23-55in TVs; 75x75 to 400x400 VESA TV wall mount patterns; 66lb/30kg capacity - TV mounting bracket ships assembled
Specifications
Minimum Load Capacity
17.64 lb
Mount Profile
Low Profile
Mounting Pattern
75 x 75
Mounting Pattern
400 x 400
Mounting Pattern
400 x 200
Mounting Pattern
200 x 100
Mounting Pattern
300 x 300
Mounting Pattern
100 x 100
Mounting Pattern
200 x 200
Product Material
Steel
Product Material
Aluminum
UPC Alternates
065030895149
Application/Usage
Lobby
Application/Usage
Wall
Application/Usage
Board Room
Country of origin
China
Device Supported
Curved Screen Display
Device Supported
Flat Panel Display
Device Supported
TV
Features
8°/-15° Tilt
Features
Durable
Features
Articulating
Features
Adjustable
Features
+/- 90° Swivel
Features
Tool-less Adjustment
Features
+/- 3° Rotation
Features
Full Motion
Features
Cable Management
Features
180° Swivel
Finishing
Silver
Height
17.7"
Length
23.4"
Limited Warranty
2 Year
Manufacturer
StarTech.com
Manufacturer Part Number
FHA-TV-WALL-MOUNT
Manufacturer Website Address
http://www.startech.com
Marketing Information
"The steel and aluminum construction of this VESA TV Wall Mount supports TVs from 23"" to 55"" and up to 66lb (30kg). The arm assembly provides smooth one-touch height adjustment thanks to its spring-loaded mechanism that acts as a counterbalance. The VESA plate supports mounting patterns of 75x75 to 400x400.
Versatile TV Mounting
Securely mount a flat or curved-screen TV or digital signage in a convenient location for viewing by visitors clients and employees. This TV wall mount is ideal for lobbies boardrooms and manufacturing facilities. The lateral range of 3.54 ft (1.08m) is ideal for corner mounting. The jointed arm folds on itself and creates a slim profile from the wall of just 2.2in (5.8cm) for limited space installations. The minimum TV weight is 17.6lb (8kg). M5/M6/M8 Screws of various lengths and an assortment of washers and spacers enhance TV mounting compatibility. Mount into wood-stud or concrete walls using the included hardware.
Supported VESA mounting patterns: 75x75100x100 200x100 200x200 300x300 400x200 and 400x400.
Full-Motion Adjustment
The VESA plate swivels +90 / -90 degrees tilts +8 / -15 degrees and rotates +3 / -3 degrees. Customize the viewing experience and comfort with these full-motion capabilities. The one-touch spring-assisted mechanism facilitates effortless height adjustments with a range of up to 12.6in (32cm).
The arm assembly extends up to 23.4 in (59.5 cm) from the wall to accommodate different viewing positions.
Durable Construction
The robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation.
The height adjustable TV wall mount is backed for two years including free lifetime 24/5 multi-lingual technical assistance."
Maximum Load Capacity
66.14 lb
Maximum Screen Size Supported
55"
Minimum Screen Size Supported
23"
Package Contents
- 1 x Arm Assembly
- 2 x Decorative Covers
- 2 x VESA Extension Plates LH
- 2 x VESA Extension Plates RH
- 8 x VESA Extension Plate Screws
- 1 x Wrench
- 1 x 4mm Hex Key
- 1 x 6mm Hex Key
- 1 x Bubble Level
- 4 x M5x14mm Screws
- 4 x M6x14mm Screws
- 4 x M6x30mm Screws
- 4 x M8x30mm Screws
- 4 x M8x50mm Screws
- 4 x Display Washers Small
- 4 x DiapLay Washers Large
- 8 x Short Spacers
- 8 x Tall Spacers
- 5 x Wall Mounting Screws
- 5 x Concrete Anchors
- 5 x Wall Mounting Washers
- 1 x Manual
Packaged Quantity
1
Product color
Black
Product Type
Wall Mount
VESA Mount Compatible
Yes
Weight (Approximate)
13.20 lb
