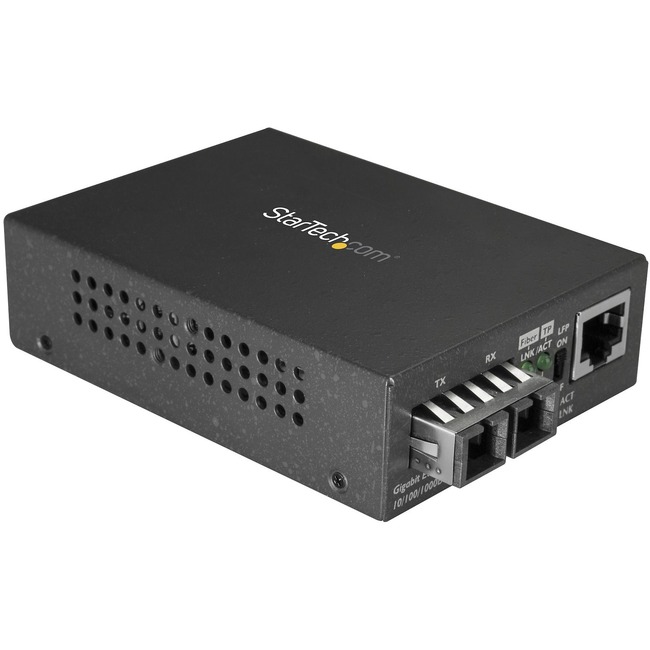

StarTech.com Multimode SC Fiber Ethernet Media Converter - 1000BASE-SX Gigabit Fiber Optic to Copper Bridge - 10/100/1000 Network - 550m
StarTech.com Multimode SC Fiber Ethernet Media Converter - 1000BASE-SX Gigabit Fiber Optic to Copper Bridge - 10/100/1000 Network - 550m - Multimode fiber Ethernet media converter extends & bridges copper networks - 10/100/1000 (Gigabit), 1000BASE-SX, 850nm, 550m (1084 ft), Unmanaged, MMF, SC, RJ45, Mounting Brackets, LFP, VLAN, ESD Surge + Contact & Air Protection, 2 Yr Warranty
| $87.43 | Retail $98.99 |
- Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)
- Compact design and wall mountable
- Non-blocking full wire-speed forwarding rate
- Provides DIP switch supporting Link Fault Pass-through function
- LED Indicators for simple Ethernet/fiber network link monitoring
- 850 nm wavelength
- Supports IEEE 802.1q Tag VLAN pass-through
Manufacturer:
StarTech.com
Product ID:
68187
Item:
MCMGBSCMM055
UPC Code:
818241349389
Our Part #
2NZ533
Condition
New
$87.43EA
$98.99
$98.99
Availability
Only 1529 Left In Stock
You may be also interested
Product description
StarTech.com Multimode SC Fiber Ethernet Media Converter - 1000BASE-SX Gigabit Fiber Optic to Copper Bridge - 10/100/1000 Network - 550m - Multimode fiber Ethernet media converter extends & bridges copper networks - 10/100/1000 (Gigabit), 1000BASE-SX, 850nm, 550m (1084 ft), Unmanaged, MMF, SC, RJ45, Mounting Brackets, LFP, VLAN, ESD Surge + Contact & Air Protection, 2 Yr Warranty
Multimode fiber Ethernet media converter extends & bridges copper networks - 10/100/1000 (Gigabit), 1000BASE-SX, 850nm, 550m (1084 ft), Unmanaged, MMF, SC, RJ45, Mounting Brackets, LFP, VLAN, ESD Surge + Contact & Air Protection, 2 Yr Warranty
Specifications
Fiber Mode Supported
Multi-mode
Fiber Optic Wavelength
850 nm
Maximum Distance Supported
1804.46 ft
SC Port Type
Duplex
UPC Alternates
065030878227 818214635204 818239508774 818239741997 818241349389 818242680658
UPC Alternates
065030878227 818214635204 818239508774 818242680658
Country of origin
Taiwan
Depth
2.8"
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmental Certification
REACH
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Form factor
Wall Mountable
Height
1"
Limited Warranty
2 Year
Manufacturer
StarTech.com
Manufacturer Part Number
MCMGBSCMM055
Manufacturer Website Address
http://www.startech.com
Marketing Information
This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 mover multimode fiber on 1000BASE-SXnetworks.
Extend your GbE network cost-effectively
The fiber media converter offers a cost-effective way to transparently convert copper to fiber or fiber to copper for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles) the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes for instance connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
1000Base-T
Network Technology
1000Base-TX
Network Technology
10Base-T
Network Technology
1000Base-SX
Package Contents
- Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
- 1 x Universal power adapter (NA/JP UK EU ANZ)
- 1 x Quick-start guide
Packaged Quantity
1
Plug/Connector Type
Type N
Power consumption
10 W
Power source
AC Adapter
Product Name
Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
Product Type
Transceiver/Media Converter
Total Number of Ports
2
Weight (Approximate)
7.10 oz
Width
3.8"
