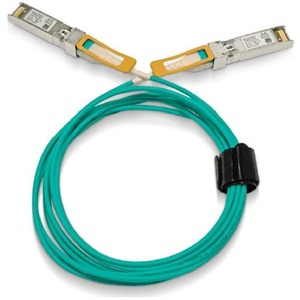

Mellanox LinkX Fiber Optic Network Cable
Mellanox LinkX Fiber Optic Network Cable - 32.81 ft Fiber Optic Network Cable for Network Device - First End: 1 x SFP28 Male Network - Second End: 1 x SFP28 Male Network - 26 Gbit/s - Orange
| $182.81 | Retail $292.00 |
- Up to 25 Gb/s data rate
- Programmable Rx output amplitude and pre-emphasis
- Programmable Tx input equalizer
- Selectable Retiming
- SFF-8665 compliant
- Single 3.3 V power supply
- 0.8 W power dissipation (typ, with retiming)
- BER better than 10-15
- Up to 100 meters length
- Hot Pluggable
By:
Mellanox
Manufacturer:
Mellanox Technologies Ltd
Product ID:
69257
Item:
MFA2P10-A010
UPC Code:
041853295335
Our Part #
9B1108
Condition
New
$182.81EA
$292.00
$292.00
Availability
Only 2 Left In Stock
Product description
Mellanox LinkX Fiber Optic Network Cable - 32.81 ft Fiber Optic Network Cable for Network Device - First End: 1 x SFP28 Male Network - Second End: 1 x SFP28 Male Network - 26 Gbit/s - Orange
32.81 ft Fiber Optic Network Cable for Network Device - First End: 1 x SFP28 Male Network - Second End: 1 x SFP28 Male Network - 26 Gbit/s - Orange
Specifications
UPC Alternates
041853295335
Brand Name
Mellanox
Cable length
32.81 ft
Cable type
Fiber Optic
Color
Orange Cable
Color
Orange
Connector on First End
SFP28 Male Network
Connector on First End
1 x SFP28 Male Network
Data transfer rate
26 Gbit/s
Device Supported
Network Device
Environmental Certification
RoHS
Environmentally Friendly
Yes
Features
Active
Fiber Optic Mode
Multi-mode
Manufacturer
Mellanox Technologies Ltd
Manufacturer Part Number
MFA2P10-A010
Manufacturer Website Address
http://www.mellanox.com
Marketing Information
Mellanox MFA2P10-AXXX is an SFP28 Active Optical Cable (AOC) designed for use in 25GbE Ethernet systems.
The MFA2P10 AOC offers high port density and configurability and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable it is easy to install and replace.
The MFA2P10 has a standard SFF-8685 compliant SFP28 port on the electrical side towards the host system. It contains one fiber optic transceiver per end operating at data rates of up to 26 Gb/s.
The MFA2P10 offers selectable retiming for both its optical transmitter and receiver for the 25-26 Gbp/s rates but the AOC also supports lower bit rates without retiming. The transmitter has programmable input equalizers and input squelch function while the receiver has programmable output amplitude and pre-emphasis.
Rigorous production testing ensures the best out-of-the-box installation experience performance and durability
Product Line
LinkX
Product Name
LinkX Fiber Optic Network Cable
Product Type
Network Cable
