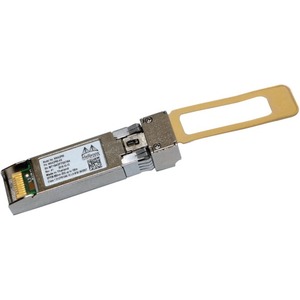

Mellanox 25Gb/s Optical Transceiver
Mellanox 25Gb/s Optical Transceiver - For Optical Network, Data Networking - 1 x LC Network - Optical Fiber - Multi-mode - 25 Gigabit Ethernet - Hot-pluggable
| $134.11 | Retail $215.00 |
- Up to 26Gb/s data rate
- Programmable Rx output emphasis
- Programmable Tx input equalizer
- Selectable retiming
- SFF-8402 compliant
- 3.3V power supply
- SFP28 power level 1
- BER better than 1E-15
- Class 1 laser safety
- Up to 100m on OM4 and 70m on OM3 multimode fiber at 25Gb/s
- Up to 100m on OM3 at 10Gb/s
- Hot pluggable
- RoHS6 compliant
- IEEE 802.3 25GBASE-SR compliant
- IEEE 802.3 10GBASE-SR compliant
- SFF-8472 compliant I2C management interface
- 25G to 10G rate selection by turning off CDR
By:
Mellanox
Manufacturer:
Mellanox Technologies Ltd
Product ID:
69270
Item:
MMA2P00-AS
UPC Code:
088698559987
Our Part #
8NX751
Condition
New
$134.11EA
$215.00
$215.00
Availability
Currently out of stock
Product description
Mellanox 25Gb/s Optical Transceiver - For Optical Network, Data Networking - 1 x LC Network - Optical Fiber - Multi-mode - 25 Gigabit Ethernet - Hot-pluggable
For Optical Network, Data Networking - 1 x LC Network - Optical Fiber - Multi-mode - 25 Gigabit Ethernet - Hot-pluggable
Specifications
Fiber Mode Supported
Multi-mode
Interfaces/Ports Details
1 x LC Network
UPC Alternates
088698559987
Application/Usage
Data Networking
Application/Usage
Optical Network
Brand Name
Mellanox
Connector Type
LC
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
25 Gigabit Ethernet
Form factor
Hot-pluggable
Limited Warranty
1 Year
Manufacturer
Mellanox Technologies Ltd
Manufacturer
NVIDIA Corporation
Manufacturer Part Number
MMA2P00-AS
Manufacturer Website Address
http://www.mellanox.com
Manufacturer Website Address
http://www.nvidia.com
Marketing Information
Mellanox® MMA2P00-AS is a pluggable SFP28 optical transceiver designed for use in 25Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology in order to provide high performance at low power. The transceiver operates over a pair of multi-mode (MMF) fibers using a nominal wavelength of 850 nm and is SFF-8402 compliant.
The MMA2P00-AS has a standard SFP28 connector on the electrical side towards the host system supporting CAUI-1. The optical interface is composed of two optical channels/fibers one in each direction intended for a multi-mode optical cable connected via standard LC connectors. Each channel/fiber operates at signaling rates up to 25.78125 GBd.
Rigorous production testing ensures the best out-of-the-box installation experience performance and durability.
The MMA2P00-AS has a standard SFP28 connector on the electrical side towards the host system supporting CAUI-1. The optical interface is composed of two optical channels/fibers one in each direction intended for a multi-mode optical cable connected via standard LC connectors. Each channel/fiber operates at signaling rates up to 25.78125 GBd.
Rigorous production testing ensures the best out-of-the-box installation experience performance and durability.
Media Type Supported
Optical Fiber
Product Name
25Gb/s Optical Transceiver
Product Type
SFP28
Total Number of Ports
1
