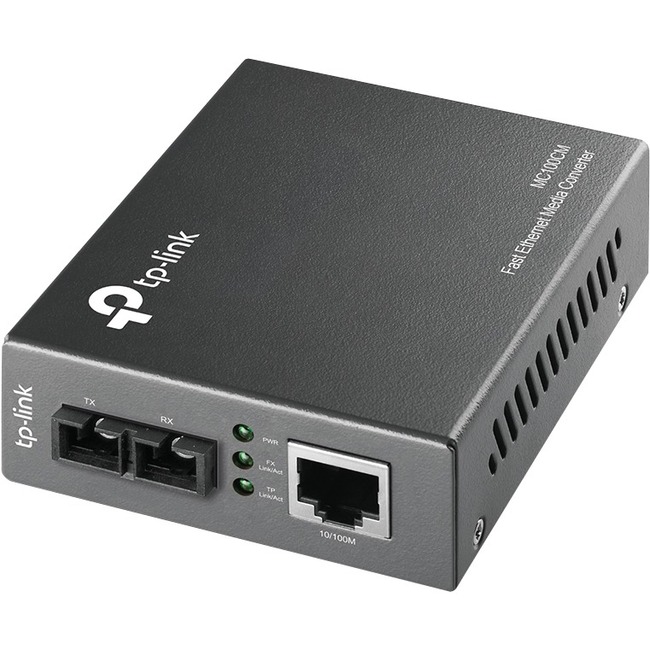

TP-LINK MC100CM Media Converter, 10/100Mbps RJ45 to 100M multi-mode SC fiber, up to 1.2miles, chassis mountable
TP-LINK MC100CM Media Converter, 10/100Mbps RJ45 to 100M multi-mode SC fiber, up to 1.2miles, chassis mountable - 1 x Network (RJ-45) - 10/100Base-TX, 100Base-FX - External"
| $18.52 | Retail $19.99 |
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Extends fiber distance up to 1.2 miles (2km)
By:
TP-Link
Manufacturer:
TP-LINK Technologies Co., Ltd
Product ID:
69367
Item:
MC100CM
UPC Code:
758399146068
Our Part #
KA4938
Condition
New
$18.52EA
$19.99
$19.99
Availability
Only 204 Left In Stock
Product description
TP-LINK MC100CM Media Converter, 10/100Mbps RJ45 to 100M multi-mode SC fiber, up to 1.2miles, chassis mountable - 1 x Network (RJ-45) - 10/100Base-TX, 100Base-FX - External"
1 x Network (RJ-45) - 10/100Base-TX, 100Base-FX - External"
Specifications
Fiber Mode Supported
Multi-mode
Fiber Optic Wavelength
1310 nm
Maximum Distance Supported
1.24 Mile
UPC Alternates
758399146068 801096850759 845973030391
Additional Information
Wavelength: 1310 nm
Brand Name
TP-Link
Depth
2.9"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Fast Ethernet
Form factor
External
Height
1.1"
Manufacturer
TP-LINK Technologies Co. Ltd
Manufacturer Part Number
MC100CM
Manufacturer Website Address
http://www.tp-link.com/us
Marketing Information
The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector.
Media Type Supported
Optical Fiber
Network Technology
100Base-FX
Network Technology
10/100Base-TX
Number of Network (RJ-45) Ports
1
Package Contents
- MC100CM Fast Ethernet Media Converter
- Power Adapter
- Installation Guide
Power consumption
2.40 W
Power source
Power Adapter
Product Name
MC100CM Fast Ethernet Media Converter
Product Type
Transceiver/Media Converter
Total Number of Ports
2
Width
3.7"
