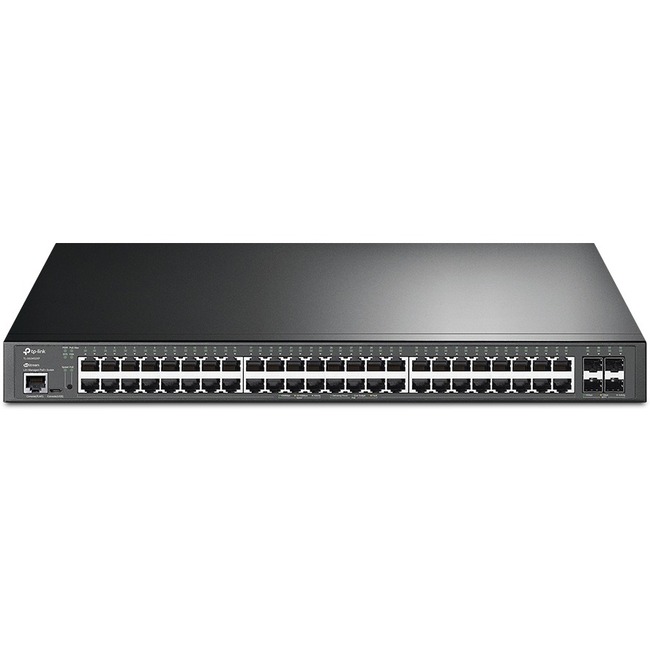

TP-Link TL-SG3452XP - JetStream TL-SG3452XP Ethernet Switch - Limited Lifetime Warranty
TP-Link TL-SG3452XP - JetStream TL-SG3452XP Ethernet Switch - Limited Lifetime Warranty - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 1000Base-T, 10GBase-X - 3 Layer Supported - Modular - Power Supply - 49.19 W Power Consumption - 500 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable, Desktop
| $904.51 |
- 10G Lightning-Fast Uplink: Enjoy high-bandwidth connectivity and non-blocking switching capacity with four 10 Gbps SFP+ slots.
- PoE+ Output with 500 W Power Budget: Design your optimal network layout with forty-eight 802.3af/at PoE+ gigabit ports.*
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Abundant L2 and L2+ Features: It supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
- Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, and 802.1X Authentication.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
By:
TP-Link
Manufacturer:
TP-LINK Technologies Co., Ltd
Product ID:
69400
Item:
TL-SG3452XP
UPC Code:
840030702518
Our Part #
00HX77
Condition
New
$904.51EA
Availability
Only 26 Left In Stock
Product description
TP-Link TL-SG3452XP - JetStream TL-SG3452XP Ethernet Switch - Limited Lifetime Warranty - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 1000Base-T, 10GBase-X - 3 Layer Supported - Modular - Power Supply - 49.19 W Power Consumption - 500 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable, Desktop
48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 1000Base-T, 10GBase-X - 3 Layer Supported - Modular - Power Supply - 49.19 W Power Consumption - 500 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable, Desktop
Specifications
Number of Total Expansion Slots
4
PoE Budget
500 W
Total Number of Network Ports
48
UPC Alternates
840030702518
Brand Name
TP-Link
Country of origin
China
Depth
13"
Environmental Certification
RoHS
Ethernet Technology
Gigabit Ethernet
Ethernet Technology
10 Gigabit Ethernet
Expansion Slot Type
SFP+
Form factor
Rack-mountable
Form factor
Desktop
Frequency
50 Hz
Frequency
60 Hz
Height
1.7"
Input voltage
120 V AC
Input voltage
230 V AC
Layer Supported
3
Limited Warranty
3 Year Lifetime
Manageable
Yes
Manufacturer
TP-LINK Technologies Co. Ltd
Manufacturer Part Number
TL-SG3452XP
Manufacturer Website Address
http://www.tp-link.com/us
Marketing Information
10G Uplink Managed Switch with 48 PoE+ Ports for a Complete Omada Network
TL-SG3452XP
10G Lightning-Fast Uplink Connection
4� 10 Gbps SFP+ Slots for High-Bandwidth Connectivity
PoE+ Output
48� Gigabit PoE+ Ports with Total 500 W Power Budget
Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network
Advanced L2+ Features
Static Routing IGMP Snooping 802.1Q VLAN and More
Enterprise Switch with 10G Uplink
4� 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency so reliable and lightning-fast connections to servers and other switches are easily built.
Dedicated 48 PoE+ Ports (500 W Budget) for Numerous Applications
The 48� 802.3af/at compliant PoE+ ports support up to 500 W total PoE power budget.* Designed to use a single Ethernet cable for data and power transmission it offers flexible deployment for PoE-supported devices such as wireless access points IP cameras and IP phones lowering infrastructure costs for small businesses.
Software-Defined Networking (SDN) with Cloud Access
Omada's Software-Defined Networking (SDN) platform integrates network devices including access points switches and gateways providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided ideal for use in hospitality education retail offices and more.
- Hassle-Free Cloud or On-Premises Controllers
- Multi-Site Cloud Management
- Zero-Touch Provisioning (ZTP)
- Intelligent Monitoring
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network providing a reliable and efficient solution for enterprises campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding Port Security Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available making it easier than ever to prevent them. In addition the Access Control Lists (ACL L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address IP address TCP/UDP ports or VLAN ID. Users' network access can be controlled via 802.1X authentication which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10GBase-X
Network Technology
1000Base-T
Networking standards
IEEE 802.1p
Networking standards
IEEE 802.3ad
Networking standards
IEEE 802.1x
Networking standards
IEEE 802.1w
Networking standards
IEEE 802.3x
Networking standards
IEEE 802.1D
Networking standards
IEEE 802.1ab
Networking standards
IEEE 802.3af
Networking standards
IEEE 802.1s
Networking standards
IEEE 802.1Q
Networking standards
IEEE 802.3at
Package Contents
- JetStream TL-SG3452XP Ethernet Switch
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
Port/Expansion Slot Details
48 x Gigabit Ethernet PoE+
Port/Expansion Slot Details
4 x 10 Gigabit Ethernet Expansion Slot
Power consumption
49.19 W
Power source
Power Supply
Product color
Black
Product Line
JetStream
Product Name
JetStream TL-SG3452XP Ethernet Switch
Product Type
Ethernet Switch
Width
17.3"
