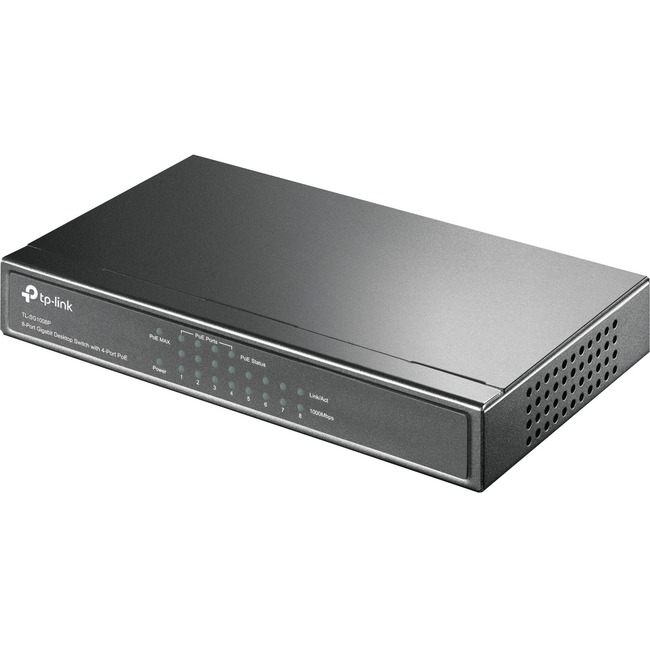

TP-LINK TL-SG1008P - 8 Port Gigabit PoE Switch - Limited Lifetime Protection
TP-LINK TL-SG1008P - 8 Port Gigabit PoE Switch - Limited Lifetime Protection - 4 PoE+ Ports @64W - Desktop - Plug & Play - Sturdy Metal w/ Shielded Ports - Fanless - QoS & IGMP Snooping Unmanaged
| $61.02 |
- Flexible Full Gigabit 8-Port PoE Configuration: 4x PoE+ (802.3at/af) 10/100/1000 Mbps RJ45 ports providing up to 30W per port and total PoE power budget of 64W, together w/ 4x Gigabit Non-PoE Port for high-speed connections.
- Plug and Play: Easy setup with no software installation or configuration needed.
- Sturdy Metal Case: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- Reliable and Quiet: IEEE 802.3X flow control provides reliable data transfer and Fanless design ensures quiet operation.
By:
TP-Link
Manufacturer:
TP-LINK Technologies Co., Ltd
Product ID:
69425
Item:
TL-SG1008P
UPC Code:
115971150279
Our Part #
QZ6370
Condition
New
$61.02EA
Availability
Only 22 Left In Stock
Product description
TP-LINK TL-SG1008P - 8 Port Gigabit PoE Switch - Limited Lifetime Protection - 4 PoE+ Ports @64W - Desktop - Plug & Play - Sturdy Metal w/ Shielded Ports - Fanless - QoS & IGMP Snooping Unmanaged
4 PoE+ Ports @64W - Desktop - Plug & Play - Sturdy Metal w/ Shielded Ports - Fanless - QoS & IGMP Snooping Unmanaged
Specifications
PoE Budget
64 W
Product Material
Metal
Total Number of Network Ports
8
UPC Alternates
115971150279 682851732080 696458712536 845973021160
UPC Alternates
845973021160
UPC Alternates
115971150279 657379373619 682851732080 696458712536 845973021160 997856805296
Brand Name
TP-Link
Certifications & Standards
- CE
- FCC
Depth
3.9"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Form factor
Desktop
Height
1.1"
Input voltage
48 V DC
Layer Supported
2
Manufacturer
TP-LINK Technologies Co. Ltd
Manufacturer Part Number
TL-SG1008P
Manufacturer Website Address
http://www.tp-link.com/us
Marketing Information
What This Product Does
8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.
How This Product Works
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets where you wish to fix devices such as APs IP Cameras or IP Phones etc.
Overload Arrangement
TL-SG1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W a priority will be arranged among the PoE ports then the system will cut off the power of the lowest-priority port.
Media Type Supported
Twisted Pair
Network Technology
10/100/1000Base-T
Networking standards
IEEE 802.3af
Networking standards
IEEE 802.3x
Networking standards
IEEE 802.3at
Networking standards
IEEE 802.1p
Number of Network (RJ-45) Ports
4
Package Contents
- TL-SG1008P Ethernet Switch
- Power Adapter
- User Guide
Port/Expansion Slot Details
4 x Gigabit Ethernet Network
Port/Expansion Slot Details
4 x Gigabit Ethernet PoE+
Power consumption
5.40 W
Power source
Power Adapter
Product color
Black
Product Name
TL-SG1008P Ethernet Switch
Product Type
Ethernet Switch
Token Ring Port
No
Twisted Pair Cable Standard
Category 6
Width
6.7"
