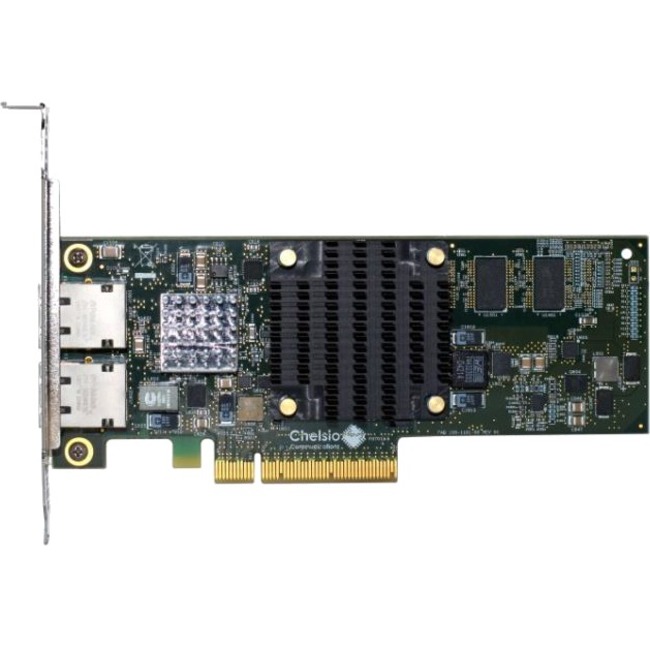

Chelsio 2-port Low Profile 1/10GbE Base-T UWire Adapter with PCI-E x8 Gen 3, RJ45 connector
Chelsio 2-port Low Profile 1/10GbE Base-T UWire Adapter with PCI-E x8 Gen 3, RJ45 connector - 10GbE Unified Wire Adapters for Offloaded TCP, RDMA(iWARP), iSCSI, FCoE, DPDK, NVMe-oF, OvS Offload, Packet Classification & Filtering, Virtualization and more
| $593.52 | Retail $913.00 |
- PCI Express Gen3 x8
- Low Latency
- Supports Up to 1M Connections
- Full TCP and UDP offload
- Full iSCSI, FCoE offload
- Full iWARP RDMA offload
- Full NAT offload
- EVB, Flex10, VNTag
- PCI-SIG SR-IOV
- Integrated media streaming offload
- HW based firewall in the cloud
- Traffic filtering & management
- Software Compatible with T4
- IEEE 1588v2 Precision Time Protocol
By:
Chelsio
Manufacturer:
Chelsio Communications
Product ID:
55881
Item:
T520-BT
UPC Code:
038457477144
Our Part #
43201404
Condition
New
$593.52EA
$913.00
$913.00
Availability
Only 6 Left In Stock
You may be also interested
Product description
Chelsio 2-port Low Profile 1/10GbE Base-T UWire Adapter with PCI-E x8 Gen 3, RJ45 connector - 10GbE Unified Wire Adapters for Offloaded TCP, RDMA(iWARP), iSCSI, FCoE, DPDK, NVMe-oF, OvS Offload, Packet Classification & Filtering, Virtualization and more
10GbE Unified Wire Adapters for Offloaded TCP, RDMA(iWARP), iSCSI, FCoE, DPDK, NVMe-oF, OvS Offload, Packet Classification & Filtering, Virtualization and more
Specifications
UPC Alternates
038457477144 650361458035 818214178626 855084007045
Brand Name
Chelsio
Country of origin
Malaysia
Device Supported
Server
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Plug-in Card
Height
2.7"
Host interface
PCI Express 3.0 x8
Manufacturer
Chelsio Communications
Manufacturer Part Number
T520-BT
Manufacturer Website Address
http://www.chelsio.com
Marketing Information
Chelsio's T520-BT is a dual port 10GBase-T 10 Gigabit Ethernet Unified Wire adapter with PCI Express 3.0 host bus interface optimized for storage cloud computing HPC virtualization and other data center applications.
The fifth-generation T5 ASIC technology from Chelsio provides the highest performance available and dramatically lowers host-system CPU communications overhead with on-board hardware that offloads TCP/IP iSCSI FCoE and iWARP RDMA processing from its host system and frees up host CPU cycles for other applications. As a result the system benefits from higher bandwidth lower latency and reduced power consumption.
Media Type Supported
Twisted Pair
Network Technology
10GBase-T
Number of Network (RJ-45) Ports
2
Product Name
T5 Dual Port 10GbE Adapter
Product Type
10Gigabit Ethernet Card
Width
6.6"
