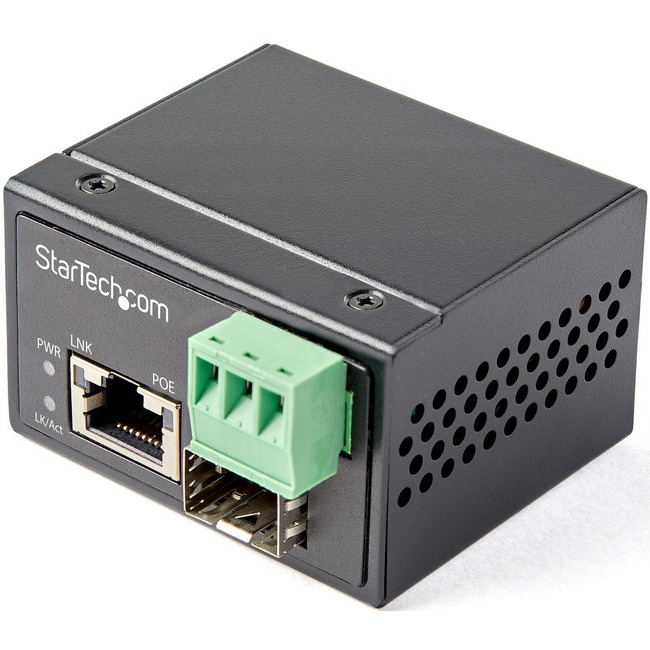

StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 30W - SFP to RJ45 - SM/MM Fiber to Gigabit Copper Mini Size IP-30
StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 30W - SFP to RJ45 - SM/MM Fiber to Gigabit Copper Mini Size IP-30 - Fiber to Ethernet media converter extends networks & converts fiber to copper - PSE source for 30W power to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) PD devices - 1 Gbps (Gigabit)| 1 x SFP | 1x RJ45 | Industrial IP-30 Aluminum| 10/100/1000Mbps |Mini
| $263.58 | Retail $281.99 |
- COMPACT SIZE + PoE: Smallest form factor Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; up to 30W of PSE power to PoE/PoE+ PD devices like cameras & sensors
- TECH SPECS: 1 Gbps | 1 x Open SFP (MSA Compliant) | 1x RJ45 | 48V-56VDC | IEEE 802.3af / IEEE 802.3at (30W) | 10/100/1000Mbps | LFP | 16K Jumbo Frames | DIN or Wall Mount Hardware Included
- ROBUST DESIGN: Industrial Gigabit Mini Media Converter w/MTBF 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing | Hardened operating temp -40C to 75C | 2 yr warr
- OPEN SFP SLOT: Any MSA compliant SFP can be used for the incoming multimode or singlemode fiber connection; easy deployment across applications or fiber cable types
- FLEXIBLE POWER INPUT: Can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)
- STARTECH.COM ADVANTAGE: IT professionals
Manufacturer:
StarTech.com
Product ID:
67611
Item:
IMC1GSFP30W
UPC Code:
065030889575
Our Part #
8NT070
Condition
New
$263.58EA
$281.99
$281.99
Availability
Only 178 Left In Stock
Product description
StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 30W - SFP to RJ45 - SM/MM Fiber to Gigabit Copper Mini Size IP-30 - Fiber to Ethernet media converter extends networks & converts fiber to copper - PSE source for 30W power to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) PD devices - 1 Gbps (Gigabit)| 1 x SFP | 1x RJ45 | Industrial IP-30 Aluminum| 10/100/1000Mbps |Mini
Fiber to Ethernet media converter extends networks & converts fiber to copper - PSE source for 30W power to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) PD devices - 1 Gbps (Gigabit)| 1 x SFP | 1x RJ45 | Industrial IP-30 Aluminum| 10/100/1000Mbps |Mini
Specifications
Fiber Mode Supported
Single-mode
Fiber Mode Supported
Multi-mode
Number of Total Expansion Slots
1
UPC Alternates
065030889575
Country of origin
Taiwan
Depth
2.3"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Expansion Slot Type
SFP (mini-GBIC)
Form factor
Wall Mountable
Form factor
DIN Rail Mountable
Height
1.9"
Limited Warranty
2 Year
Manufacturer
StarTech.com
Manufacturer Part Number
IMC1GSFP30W
Manufacturer Website Address
http://www.startech.com
Marketing Information
This open SFP PoE fiber media converter offers an easy inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector
It converts a fiber network link to a POE-enabled copper RJ45 Ethernet connection to provide data and power to remote POE devices like security cameras sensors wireless lighting and more. The converter provides a powerful networking solution for campuses warehouses factories or any applications that require POE and connectivity over long distances.
Designed for Small Spaces & Harsh EnvironmentsAt 4.5 square inches and weighing approximately 80g this mini media converter can be installed almost anywhere you need it and has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options.
OPERATING TEMPERATURESTORAGE TEMPERATURE40°C to 75°C
-40°C to 85°C
104°F to 167°F104°F to 185°FUp to 30 Watts of Power for Connected Devices30 watts of available support a wide range of devices such as:
- Surveillance Cameras
- Wireless Access Points
- Locks & Sensors
- Lighting
The Gigabit fiber media converter provides a cost-efficient way to connect remote devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements.
Industrial IoT and Bringing Connectivity Outside of the Data CenterFully compatible with 10/100/1000Base-T Ethernet networks the fiber media converter supports auto-negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices allowing you to maximize the usage and performance of legacy equipment.
The IMC1GSFP30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
1000Base-TX
Network Technology
1000Base-T
Package Contents
- Transceiver/Media Converter
- Terminal Block to Barrel Power Connector Adapter
- Quick-Start Guide
- Mounting Hardware
- Terminal Block
Plug/Connector Type
Type N
Plug/Connector Type
Terminal Block (3 Wire)
Power consumption
30 W
Power source
PoE+
Product Type
Transceiver/Media Converter
Weight (Approximate)
2.80 oz
Width
1.4"
