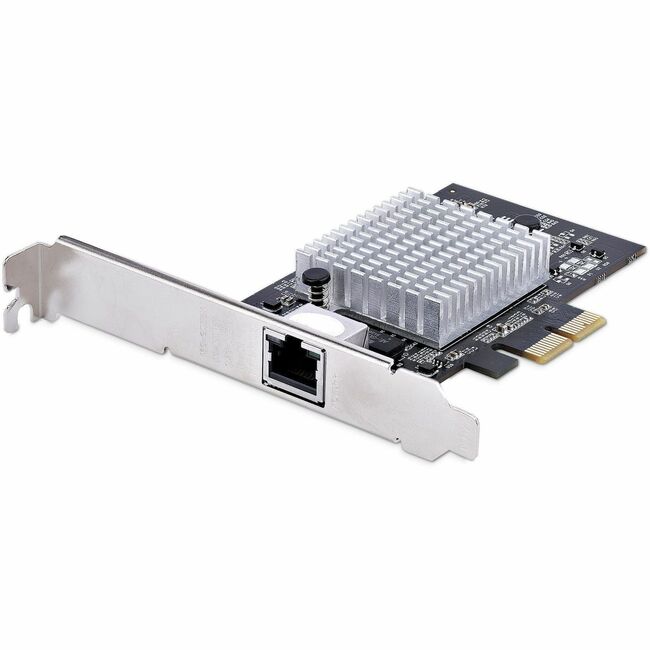

StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, PCIe Ethernet Card w/Jumbo Frame, NIC/LAN Interface Card
StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, PCIe Ethernet Card w/Jumbo Frame, NIC/LAN Interface Card - This 10G capable PCIe network adapter card leverages existing Cat5e/6/6a cabling - Six Speeds NIC 10G/5G/2.5G/1G/100M/10M; Marvell AQC113CS; PCIe 3.0 x2; 16K Jumbo; PXE Boot; AVB; PTP - The 10Gb network adapter card is compatible with Windows/Linux
| $187.46 | Retail $219.99 |
- NETWORK ADAPTER FOR PC: This 10 GbE capable PCIe network adapter card provides high-speed data transfer rates for desktops/servers leveraging an existing Cat5e, Cat6, or Cat6a cabling infrastructure
- SPECIFICATIONS: Multiple Speeds NIC 10/5/2.5/1Gbps and 100/10Mbps - 10GBASE-T and NBASE-T - 1x RJ45 Port - PCIe 3.0 x2 - Marvell AQC113CS - 16K Jumbo Frame - VLAN - PXE Boot - EEE - Full-Height and Low-Profile Brackets Included
- COMPATIBILITY: The network card for PC is compatible with Windows, Windows Server, and Linux - The variable speed options and included low profile bracket widen the compatibility of the PCIe network card with current and legacy devices
- MULTI-GIGABIT CONNECTIVITY: The network interface card auto negotiates speed and supports 2.5/5 Gbps network speeds on Cat5e cabling, and 10 Gbps on Cat6/6a - The Ethernet network card supports IP/TCP/UDP checksum offload, secure boot, PTP, and AVB
- THE IT PRO'S CHOICE: Designed and built for
Manufacturer:
StarTech.com
Product ID:
68225
Item:
ST10GSPEXNB2
UPC Code:
065030897549
Our Part #
08FY94
Condition
New
$187.46EA
$219.99
$219.99
Availability
Only 660 Left In Stock
Product description
StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, PCIe Ethernet Card w/Jumbo Frame, NIC/LAN Interface Card - This 10G capable PCIe network adapter card leverages existing Cat5e/6/6a cabling - Six Speeds NIC 10G/5G/2.5G/1G/100M/10M; Marvell AQC113CS; PCIe 3.0 x2; 16K Jumbo; PXE Boot; AVB; PTP - The 10Gb network adapter card is compatible with Windows/Linux
This 10G capable PCIe network adapter card leverages existing Cat5e/6/6a cabling - Six Speeds NIC 10G/5G/2.5G/1G/100M/10M; Marvell AQC113CS; PCIe 3.0 x2; 16K Jumbo; PXE Boot; AVB; PTP - The 10Gb network adapter card is compatible with Windows/Linux
Specifications
Bracket Height
Low Profile
Chipset Model
AQC113CS
UPC Alternates
065030897549
Chipset Manufacturer
Marvell
Country of origin
Malaysia
Device Supported
Computer/Server
Environmental Certification
WEEE
Environmentally Friendly
Yes
Form factor
Plug-in Card
Height
0.8"
Host interface
PCI Express 3.0 x2
Limited Warranty
2 Year
Manufacturer
StarTech.com
Manufacturer Part Number
ST10GSPEXNB2
Manufacturer Website Address
http://www.startech.com
Marketing Information
Install this single-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively the 10GBASE-T and NBASE-T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco®; HPE®; and Aruba®.
Increased Network Speeds
This PCIe network card provides access to increased bandwidth. It reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs online storage/backup and when streaming online content. NBASE-T technology maximizes the capability of Cat5e copper cabling over at distances of up to 100 meters. The Ethernet network card supports a 10 Gbps connection over copper using existing Cat6 (or better) copper cabling.
Enhance Existing Hardware
The Network Interface Card connects via an available PCI Express x2 3.0/4.0 (or higher) expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various systems. This card is compatible with Windows Windows Server and Linux.
Take advantage of advanced features such as Audio-Video Bridging (AVB) VLAN tagging 16 K jumbo frame full-duplex secure boot and PXE.
The PCI Express 10G NIC is backed for 2-years including free lifetime 24/5 multi-lingual technical assistance.
Media Type Supported
Twisted Pair
Network Technology
10GBase-T
Package Contents
- 10Gigabit Ethernet Card
- 1 x Low-profile Bracket
- 1x Quick-start Guide
Packaged Quantity
1
Product color
Black
Product Type
10Gigabit Ethernet Card
Weight (Approximate)
2.50 oz
Width
4.2"
