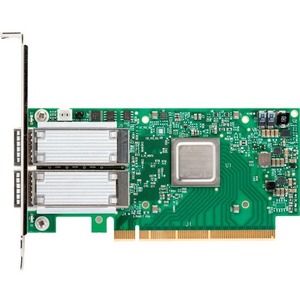

Mellanox ConnectX-6 VPI Card
Mellanox ConnectX-6 VPI Card - PCI Express 3.0 x16 - 200 Gbit/s - 2 x Total Infiniband Port(s) - 2 x Total Expansion Slot(s) - QSFP - Plug-in Card
| $2,027.86 | Retail $2,829.00 |
- To fulfill your need this infiniband/ethernet host bus adapter is a perfect choice
- This 16000MB/s bandwidth adapter is ideal for PCs with PCI Express 3.0 x16 slots, ensuring top level network connectivity for your desktops
- With the data speed of 200 Gbit/s, get a quick response while updating or transferring files
By:
Mellanox
Manufacturer:
Mellanox Technologies Ltd
Product ID:
69238
Item:
MCX654106A-HCAT
Our Part #
2LV520
Condition
New
$2,027.86EA
$2,829.00
$2,829.00
Availability
Only 58 Left In Stock
You may be also interested
Product description
Mellanox ConnectX-6 VPI Card - PCI Express 3.0 x16 - 200 Gbit/s - 2 x Total Infiniband Port(s) - 2 x Total Expansion Slot(s) - QSFP - Plug-in Card
PCI Express 3.0 x16 - 200 Gbit/s - 2 x Total Infiniband Port(s) - 2 x Total Expansion Slot(s) - QSFP - Plug-in Card
Specifications
Number of Total Expansion Slots
2
Additional Information
- ConnectX-6 VPI Card
- Short Bracket
Brand Name
Mellanox
Country of origin
Israel
Data transfer rate
200 Gbit/s
Environmental Certification
RoHS-6
Environmentally Friendly
Yes
Expansion Slot Type
QSFP
Form factor
Plug-in Card
Host interface
PCI Express 3.0 x16
Manufacturer
Mellanox Technologies Ltd
Manufacturer Part Number
MCX654106A-HCAT
Manufacturer Website Address
http://www.mellanox.com
Marketing Information
ConnectX-6 Virtual Protocol Interconnect® provides two ports of 200Gb/s for InfiniBand and Ethernet connectivity sub-600ns latency and 200 million messages per second enabling the highest performance and most flexible solution for the most demanding data center applications. ConnectX-6 is a groundbreaking addition to the Mellanox ConnectX series of industry-leading adapter cards. In addition to all the existing innovative features of past versions ConnectX-6 offers a number of enhancements to further improve performance and scalability. ConnectX-6 VPI supports HDR HDR100 EDR FDR QDR DDR and SDR InfiniBand speeds as well as 200 100 50 40 25 and 10Gb/s Ethernet speeds.
HPC ENVIRONMENTS
Over the past decade Mellanox has consistently driven HPC performance to new record heights. With the introduction of the ConnectX-6 adapter card Mellanox continues to pave the way with new features and unprecedented performance for the HPC market.
ConnectX-6 VPI delivers the highest throughput and message rate in the industry. As the first adapter to deliver 200Gb/s HDR InfiniBand 100Gb/s HDR100 InfiniBand and 200Gb/s Ethernet speeds ConnectX-6 VPI is the perfect product to lead HPC data centers toward Exascale levels of performance and scalability.
ConnectX-6 supports the evolving Co-Design paradigm with which the network becomes a distributed processor. With its In-Network Computing and In-Network Memory capabilities ConnectX-6 offloads even further computation to the network saving CPU cycles and increasing the efficiency of the network.
ConnectX-6 VPI utilizes both IBTA RDMA (Remote Data Memory Access) and RoCE (RDMA over Converged Ethernet) technologies delivering low-latency and high performance. ConnectX-6 enhances RDMA network capabilities even further by delivering end-to-end packet level flow control.
MACHINE LEARNING AND BIG DATA ENVIRONMENTS
Data analytics has become an essential function within many enterprise data centers clouds and Hyperscale platforms. Machine learning relies on especially high throughput and low latency to train deep neural networks and to improve recognition and classification accuracy. As the first adapter card to deliver 200Gb/s throughput ConnectX-6 is the perfect solution to provide machine learning applications with the levels of performance and scalability that they require.
ConnectX-6 utilizes the RDMA technology to deliver low-latency and high performance. ConnectX-6 enhances RDMA network capabilities even further by delivering end-to-end packet level flow control.
SECURITY
ConnectX-6 offers a crucial innovation to network security by providing block-level encryption. Data in transit undergoes encryption and decryption as it is stored or retrieved. The encryption/decryption based on the IEEE XTS-AES standard is offloaded by the ConnectX-6 hardware saving latency and offloading CPU. ConnectX-6 block-level encryption offload enables protection between users sharing the same resources as different encryption keys can be used.
By performing encryption in the adapter ConnectX-6 also renders encryption unnecessary elsewhere in the network such as in storage. Moreover ConnectX-6 supports Federal Information Processing Standards (FIPS) compliance alleviating the systemic need for selfencrypted disks. With this capability customers are free to choose their preferred storage device including byte-addressable and NVDIMMs that otherwise would be used without encryption.
HPC ENVIRONMENTS
Over the past decade Mellanox has consistently driven HPC performance to new record heights. With the introduction of the ConnectX-6 adapter card Mellanox continues to pave the way with new features and unprecedented performance for the HPC market.
ConnectX-6 VPI delivers the highest throughput and message rate in the industry. As the first adapter to deliver 200Gb/s HDR InfiniBand 100Gb/s HDR100 InfiniBand and 200Gb/s Ethernet speeds ConnectX-6 VPI is the perfect product to lead HPC data centers toward Exascale levels of performance and scalability.
ConnectX-6 supports the evolving Co-Design paradigm with which the network becomes a distributed processor. With its In-Network Computing and In-Network Memory capabilities ConnectX-6 offloads even further computation to the network saving CPU cycles and increasing the efficiency of the network.
ConnectX-6 VPI utilizes both IBTA RDMA (Remote Data Memory Access) and RoCE (RDMA over Converged Ethernet) technologies delivering low-latency and high performance. ConnectX-6 enhances RDMA network capabilities even further by delivering end-to-end packet level flow control.
MACHINE LEARNING AND BIG DATA ENVIRONMENTS
Data analytics has become an essential function within many enterprise data centers clouds and Hyperscale platforms. Machine learning relies on especially high throughput and low latency to train deep neural networks and to improve recognition and classification accuracy. As the first adapter card to deliver 200Gb/s throughput ConnectX-6 is the perfect solution to provide machine learning applications with the levels of performance and scalability that they require.
ConnectX-6 utilizes the RDMA technology to deliver low-latency and high performance. ConnectX-6 enhances RDMA network capabilities even further by delivering end-to-end packet level flow control.
SECURITY
ConnectX-6 offers a crucial innovation to network security by providing block-level encryption. Data in transit undergoes encryption and decryption as it is stored or retrieved. The encryption/decryption based on the IEEE XTS-AES standard is offloaded by the ConnectX-6 hardware saving latency and offloading CPU. ConnectX-6 block-level encryption offload enables protection between users sharing the same resources as different encryption keys can be used.
By performing encryption in the adapter ConnectX-6 also renders encryption unnecessary elsewhere in the network such as in storage. Moreover ConnectX-6 supports Federal Information Processing Standards (FIPS) compliance alleviating the systemic need for selfencrypted disks. With this capability customers are free to choose their preferred storage device including byte-addressable and NVDIMMs that otherwise would be used without encryption.
Product Line
ConnectX-6
Product Name
ConnectX-6 VPI Card
Product Type
Infiniband/Ethernet Host Bus Adapter
Width
6.6"
